How to Connect a Computer to the Interactive Flat Panel


Youtube Link: https://www.youtube.com/watch?v=_Yptzhs6bCE


PC

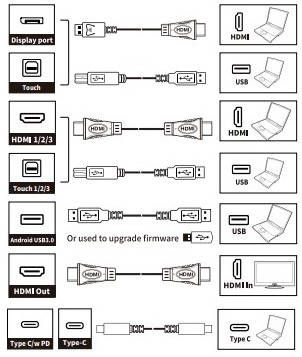

1. Connect a video cable and USB cable from the computer to the display.

    A) For PC, we recommend using a 10 - 15ft USB cable.


2. On the panel, ensure the 2 cables are connected to the correct ports.

    A) Video cable to the video port. E.g HDMI, VGA, and Display Port.

    B) USB cable to Touch Port.

    C) The 2 cables must be paired with the same ports on the panel. As an example, if you connect a HDMI cable to HDMI 3, the USB cable must be connected to Touch Port 3.



3. If you do not have touch, click here to setup touch.

Mac

1. Connect a video cable and an USB cable from the computer to the display.

    A) For Mac, we recommend using a 6ft USB cable as Mac tend to have difficulty pushing signal at longer length.


2. On the panel, ensure the 2 cables are connected to the correct ports.

    A) Video cable to the video port. E.g HDMI, VGA, and Display Port.

    B) USB cable to Touch Port.

    C) The 2 cables must be paired with the same ports on the panel. As an example, if you connect a HDMI cable to HDMI 3, the USB cable must be connected to Touch Port 3.


3. Mac requires a touch driver to provide interactivity. Click here to select and install the driver.


For additional questions, please contact support at 833-469-9520 or send an email to support@newline-interactive.com.
