How to set a Power Schedule Using NDM


  1. Login to your portal
  2. Select a panel
  3. Tap "Device Settings" at the top of the screen
  4. Then "add new"

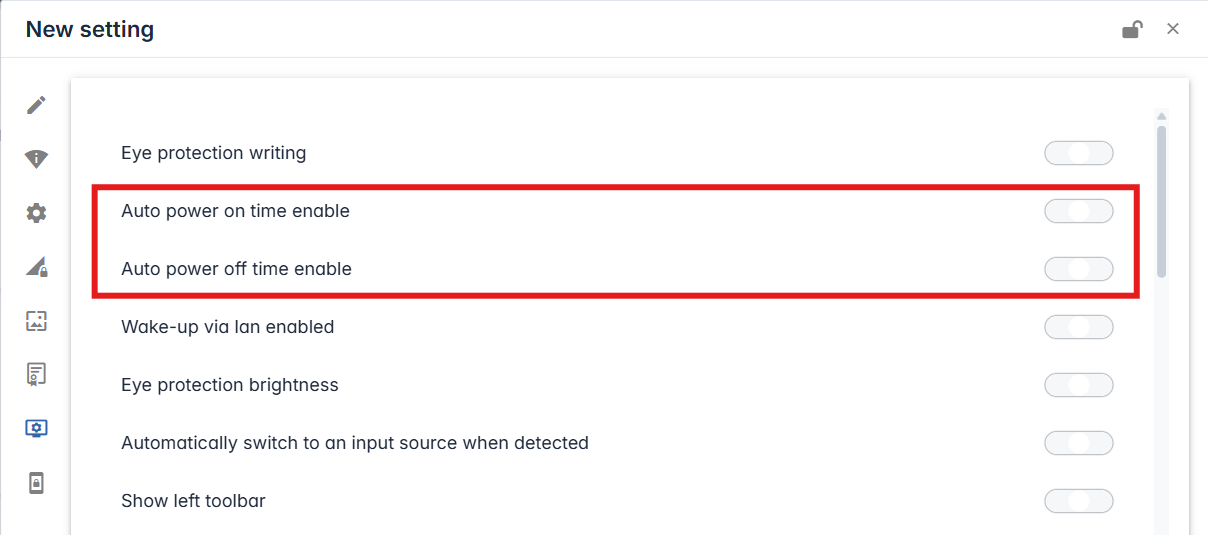

  5. Go to the "Newline Settings" icon on the left-hand side (second icon from the bottom)

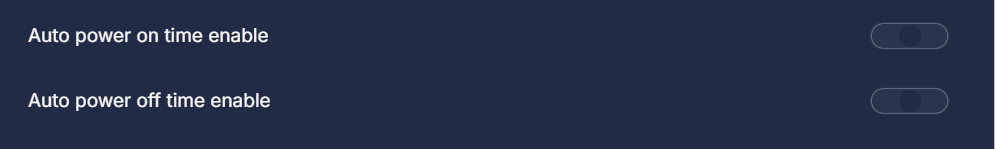

  6. Enable the toggles for "Power ON/OFF time enable"
  7. Then select the schedule you would like the panels to follow.
  8. Once this is done, name the settings package.
  9. Click "Confirm"
  10. Go back to your devices tab, select the devices you want to apply them to
  11. Re-open the device settings tab, select the newly created package, then apply.

Helpful tips:


Changing the power button option under "sleep mode" in device settings will make the power schedule follow this option. I.E if it's set to sleep, the auto power on time will wake the panel up, and the auto power off time will put the panel to sleep. This is useful for remote management and not needing to set up a wake on LAN function to turn the panels on.
