STV+ - How to Enable Fast Boot Mode


This article will help in navigating the settings menu of the STV+ panel to enable fast boot mode.



What is fast boot mode? Fast boot mode is a low-power state that allows the panel to quickly resume full operation while conserving energy using the Power button.



It can be powered on by various signals such as the physical power button, Wake on LAN (WoL), Wake on Wireless LAN(WoW), RS232, Auto Power On, or a remote control signal.




  1. 1. First open up the Settings menu by using the gear icon button on the remote controller or navigating to     the Settings app.

  2.

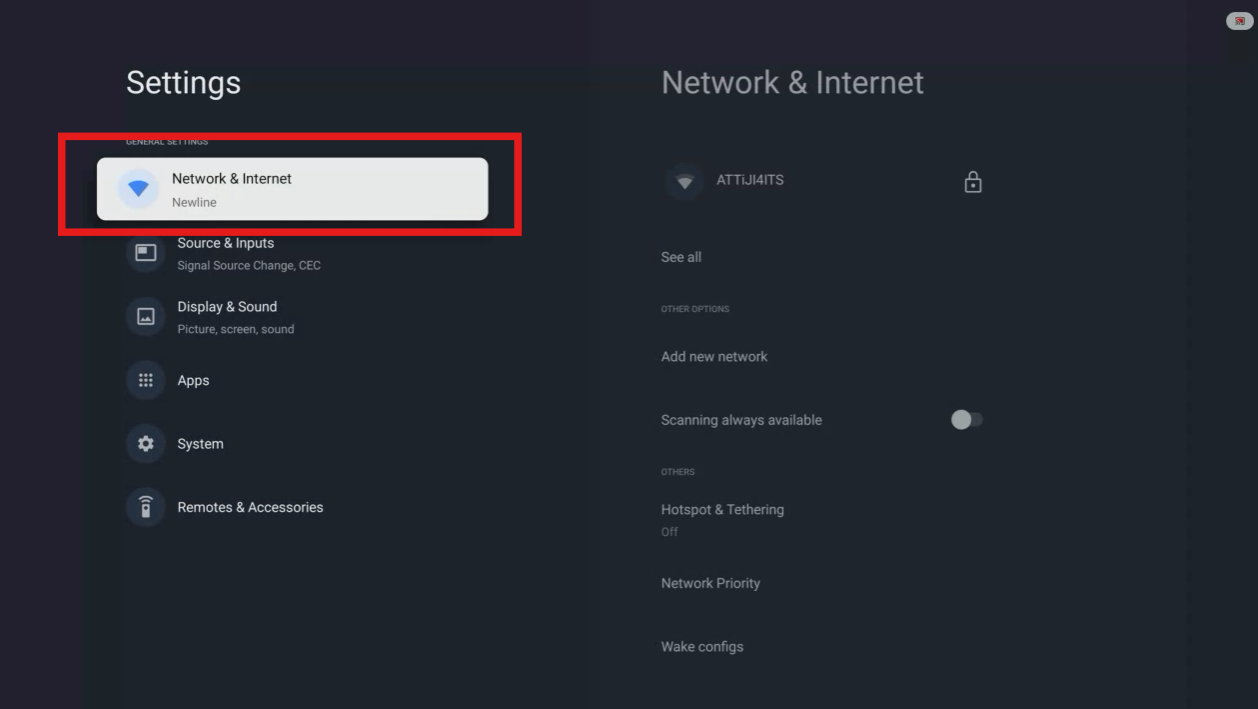

  1. 2. Navigate into the “Network & Internet”.

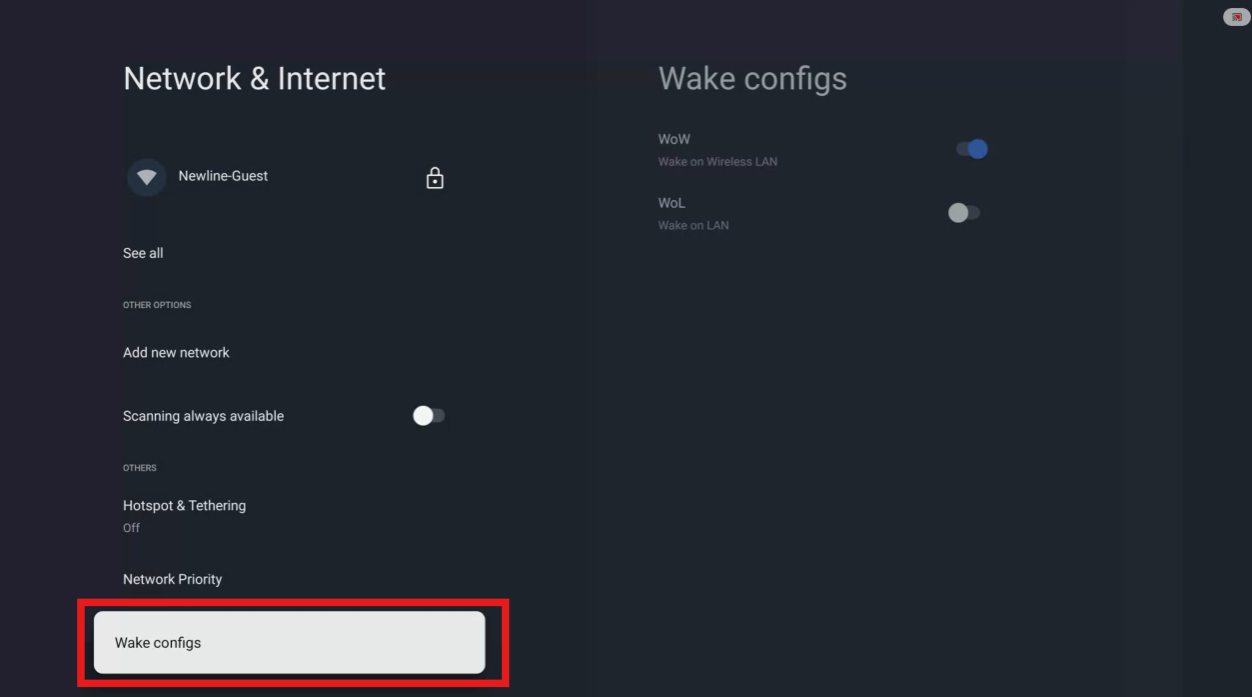

  1. 3. Then navigate to the “Wake configs” setting.






  1. 4. In the “Wake configs” settings, turn on Wake on WLAN (WoW) and/or Wake on Lan (WoL). Turning on     at least one of these settings will automatically enable Fast Boot mode.
