NDM - Mini Panel Dashboard Overview

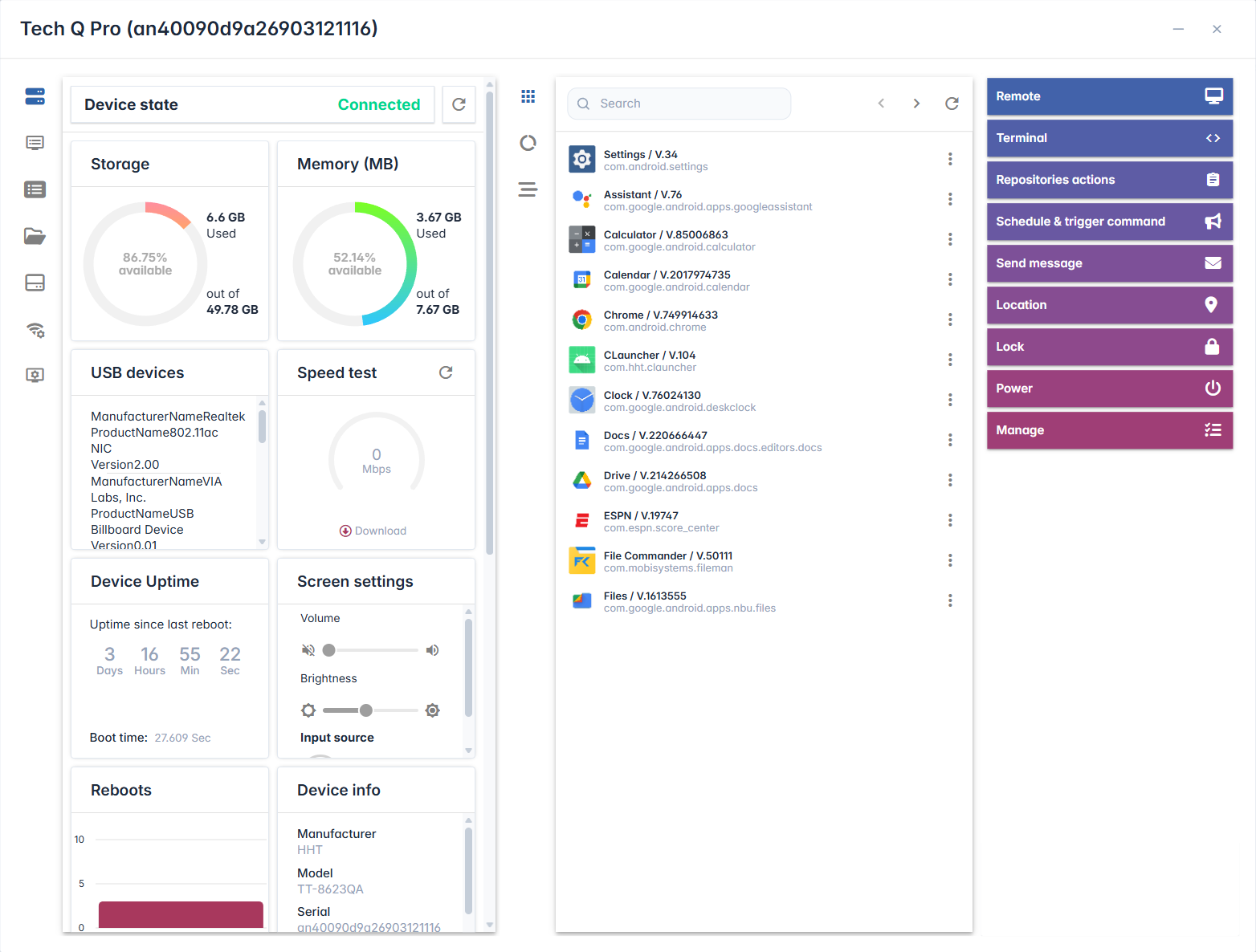

In the management portal, click the hardware ID of the panel to access the mini dashboard. The mini dashboard provides a summary and enables the issuance of commands to a signal panel.
General information

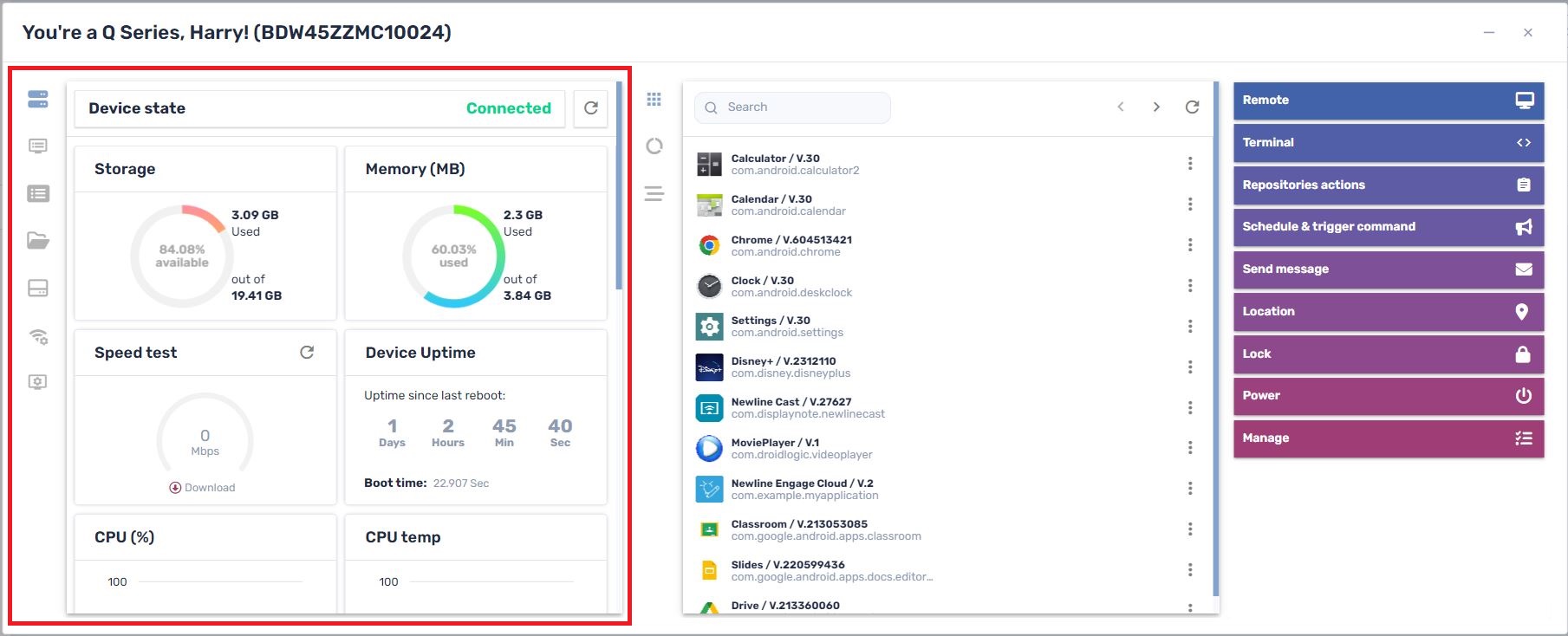

The left section provides basic and advanced information about the panel.
The Device state dictates if the panel is powered ON or OFF.
A Connected state indicates the panel is powered ON.
A Disconnected state indicates the panel is powered OFF.
Additionally, there are 7 icons you can click to gather additional information.
General - Basic information about the panel such as device uptime, wifi signal, storage, tags, etc.
Info - Additional information such as SSID, IP, model, mac address, etc.
Properties - Properties of the panel.
File System - In-depth information on the file system of the panel.
Storage Stats - Information such as internal storage capacity and cache.
Network - Additional network information such as IP, DNS, gateway, subnet.
Newline - Current settings for the panel.
App information

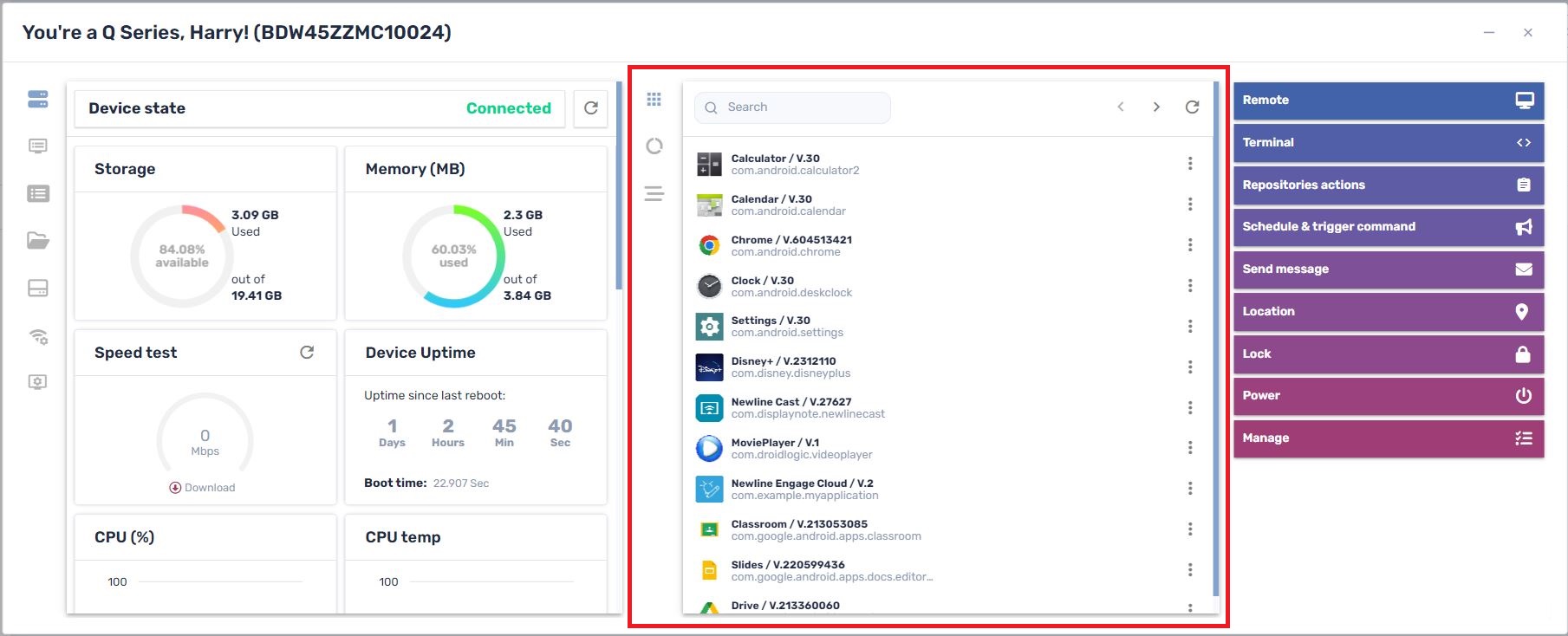

The middle section presents the apps installed on the panel.
It offers the option to do the following for each app.
- Start app
- Stop app
- Enable app
- Disable app
- Clear app data
- Uninstall app
Commands/Functions

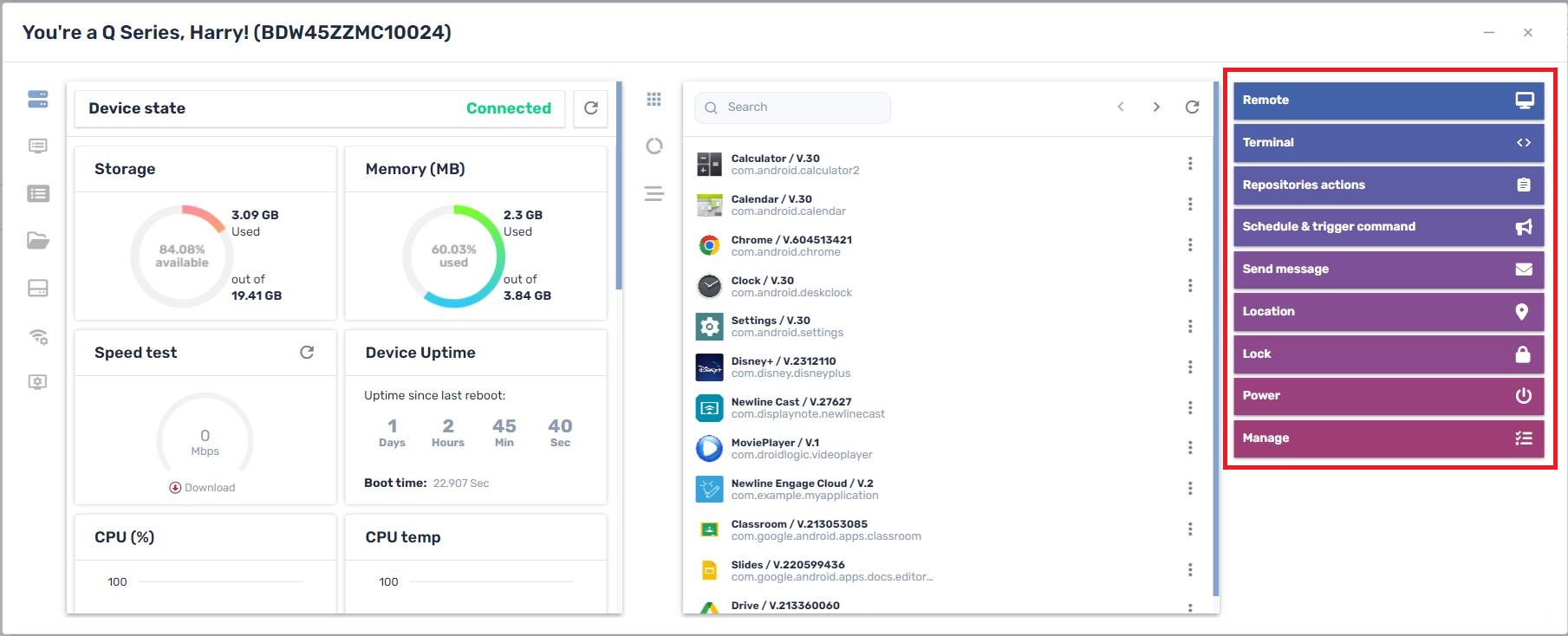

The right section are all the different commands or functions you can perform on the panel.
Remote - Desktop remote into a panel.
Terminal - Akin to command prompt in Windows.
Repositories action - Basic functions such as install apps, device settings, messages, workflow, etc.
Schedule and trigger command - A function to create schedules for your commands.
Send message - Allows basic text messages to be sent to the panels.
Location - Provides a map overview of where the panel is located.
Lock - Security commands such as lock, unlock, wipe, etc.
Power - Commands to restart, shutdown, or use Wake-on-LAN.
Manage - Commands to remove, rename, reset auth token, firmware update, etc.
