NDM - How to Install Certificates
Deploying certificates is important for web filtering, VPN authentications and many other use cases. You may use the settings repository to deploy as many certificates to as many devices at once.
In order to send a certificate, first obtain the certificate file and copy the text context.
Here is an example of a certificate body
-----BEGIN CERTIFICATE-----
htyC0DCCAbigAwIBAgIJANo7qOC32G2qMA0GCSqGSIb3DQEBCwUAMBgxFjAUBgNV
AMTDXBhLm5lc2gubG9jYWwwHhcNMTcwODE3MTQwNDA2WhcNMjEwODE2MTQwNDA2
WjAYMRYwFAYDVQQDEw1wYS5uZXNoLmxvY2FsMIIBIjANBashlEidykkGPnsTF90Z
z6x/XfD967VVUMzSptosFpk67rkTKpbXIlREfvk1V59ZDIQ45cREq8LTU4WWUwCe
hc0/EniQEAQBCI3Srlwp8Y47EPvdylm4mBPDDlVsM3z5DOaYeU0XjAvfbt0AiaFh
6XMrjuNggrwkknrR4WjRFaphq0TDmrsKRbooodAIPKBHeqJI1h2skNyFMC5MKNEF
lQPzzkkPVLAc5HQqgRvCxsR6ryRx+7kWruyeIK4omMIwFECiluh4GPt7GAUi3z1G
Gui3k45fzwHDYoyIxek81wu1q8scoBFMaQASP121OUnm4qciml6H06+BmqKkNGeN
n5yrwUtVy1EncNNz2Nf4LX1MPncqctergt38AIJBiFrU8fu3PclrQkslTqtS5vEQ
YXb67BgtXS0K2ifsLQQcgPKdm+84DMDv8EMGiwIDAQABox0wGzAMBgNVHRMEBTAD
AQH/MAsGA1UdDwQEAwICBDANBgkqhkiG9w0BAQsFAAOCAcLhi0IVHrZ1IkDsP/87
ofki5ceJA0JNRl8oemlwmKedLJU+alAea3shsTvjgkqhkiG9w0BAQEFAAOCxCVVj
AQ8AMIIBCgKCAQEAyjXFMS0g5D9qtjUiOR0Jx2Tp8EqiwE3GcKZzc9u4Vr4GDzcf
9qvuO4qZA4lKUtmst8pbstWh8d0gdwQbSY1uV1k8/vjusyCy5YIDr1D8QgUnWNHG
R1gv79vj+qWDXEi1sOSiS2qMb0AJCbAVMstUNON9zNx3b1l6RXeHXBMaLgFVZmcT
dslirh=
-----END CERTIFICATE-----
How to create and apply a certificate setting repository

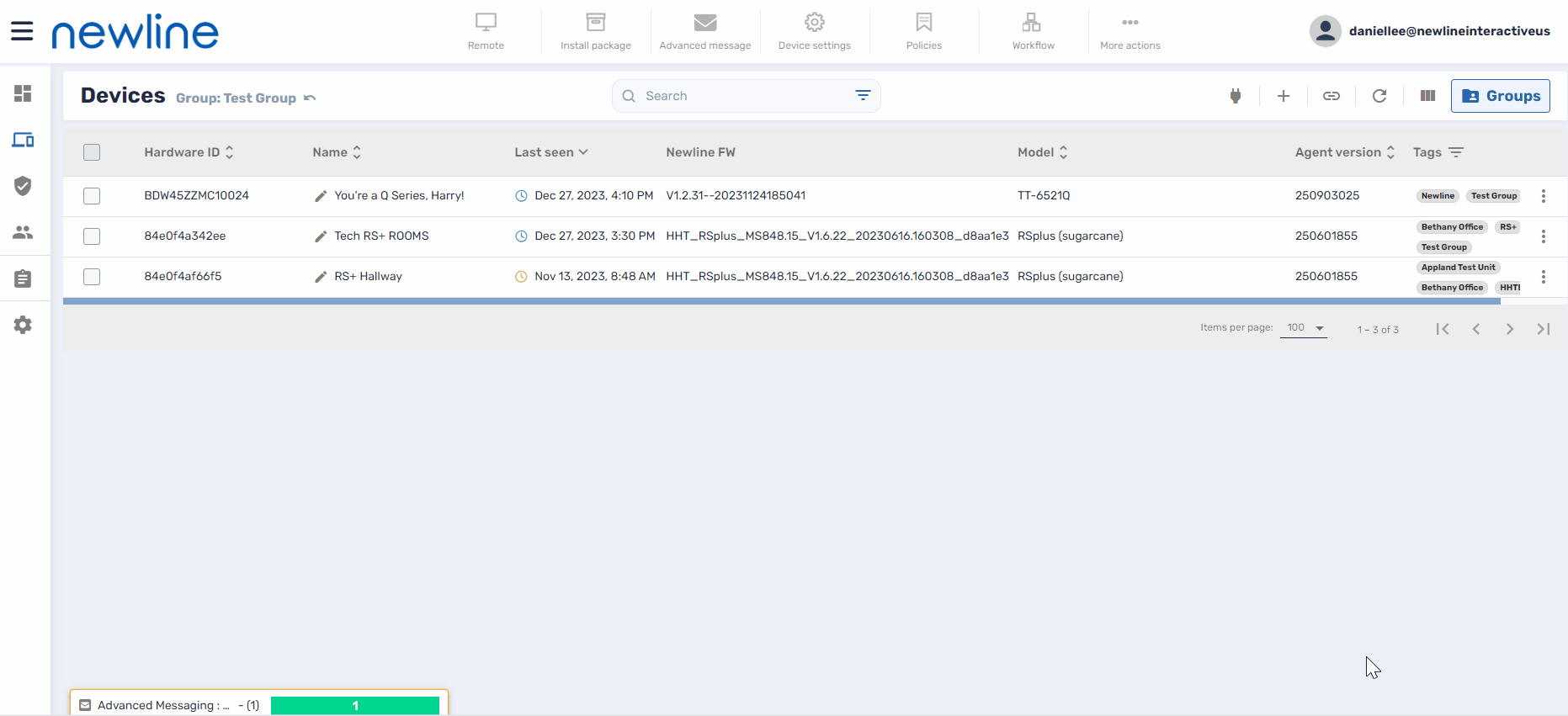

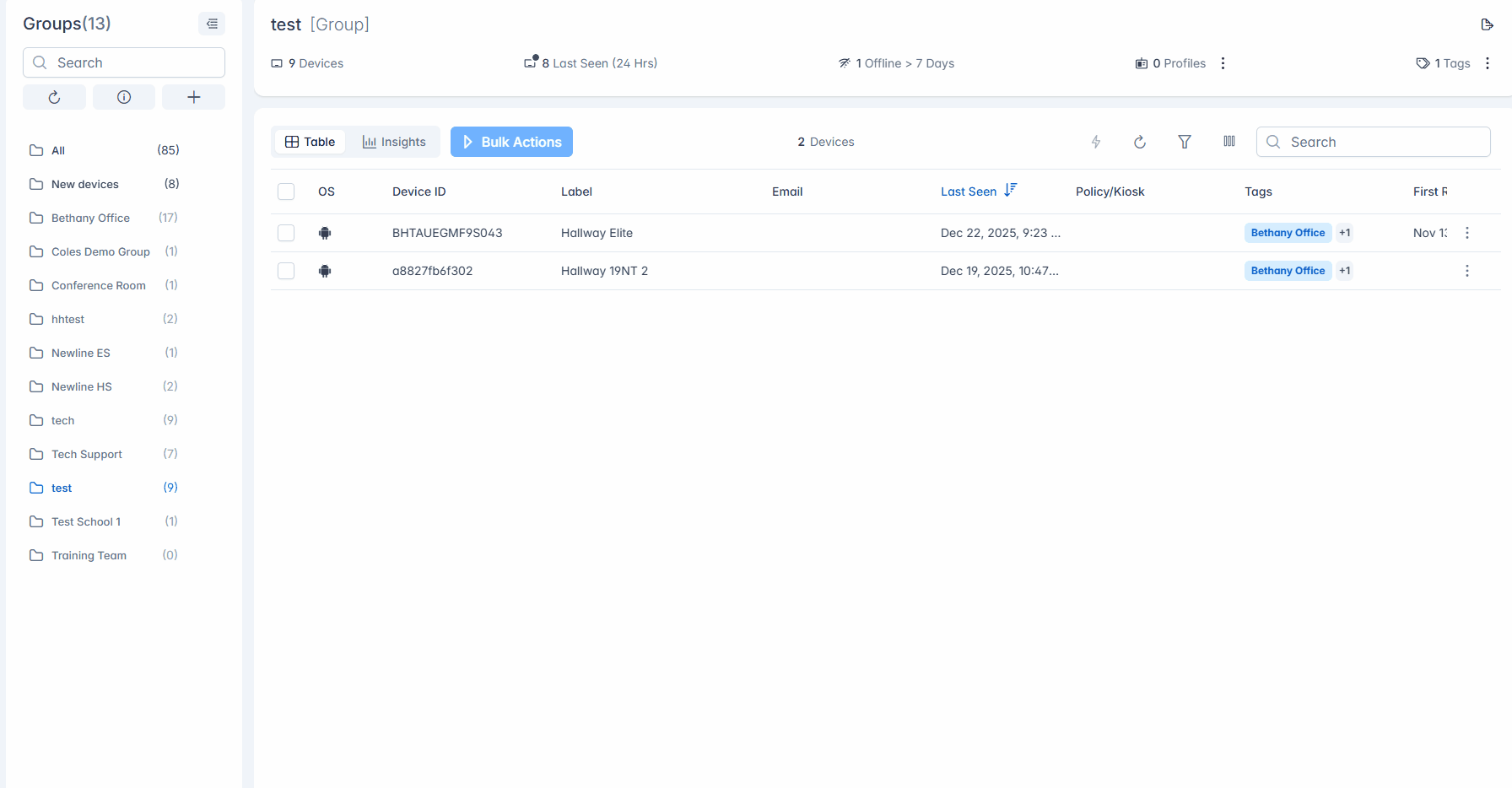

1. In the management portal, select one or multiple panels you want to install the certificate on.
2. Click Device Setting. A new window for the Device settings will appear. There will be several default templates you can use as a guide line.
3. To create a new device setting repository, click Add new.
4. Add a name for your device setting repository.
5. Click
to view the Install CA Certificate option.
6. Enable the toggle for Install certificate.
7. Select the correct certificate type: User trusted credentials, user wifi CA certificate, and VPN and apps certificate.
8. Paste the certificate body into certificate body.
9. Click Confirm to save.
10. Select the device setting repository you created and click Apply to send the certificates to the panels.
